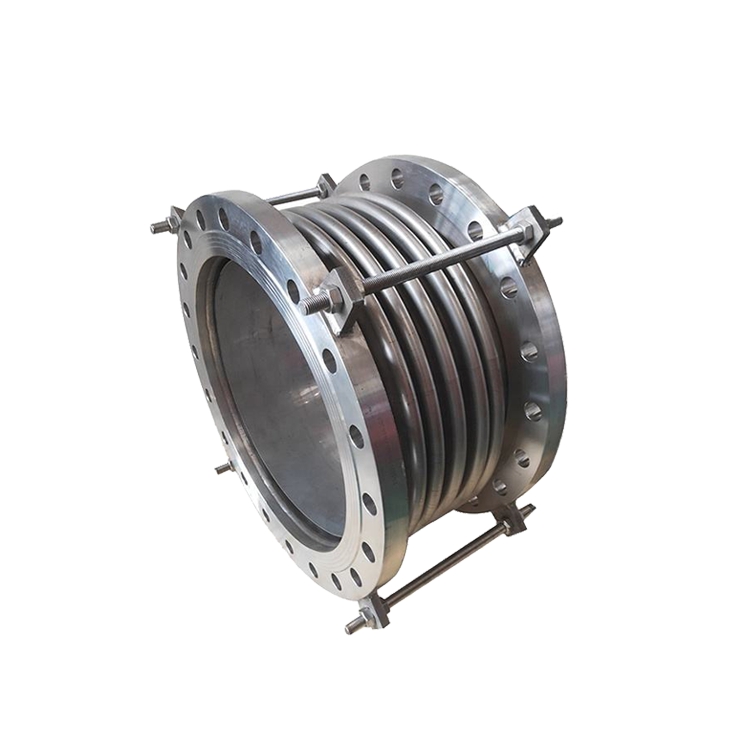

The core corrugated pipe is made of high-quality stainless steel integrated molding, which has corrosion resistance, high temperature resistance, and deformation resistance. The flange connection adopts standardized design for easy docking. Guidance and limit devices ensure safe use, special seals ensure no leakage under high pressure, reasonable structure, and long service life.
Core technical parameters
| parameter name | Specific specifications/description |
| Nominal diameter (DN) | 50 mm-1600 mm (tamaños habituales: DN100-DN500); se pueden personalizar especificaciones especiales |
| Working pressure | 0.6MPa、1.0MPa、1.6MPa、2.5MPa、4.0MPa； Choose 1.6-2.5MPa under normal operating conditions. |
| bellows material | Conventional 304 stainless steel; 316L、 321 stainless steel can be customized according to strong corrosion and high temperature working conditions. |
| Especificaciones de la brida | National standards (GB), American standards (ANSI), British standards (BS), German standards (DIN), and flange standards can be customized according to requirements. |
| Material de la brida | Conventional carbon steel (Q235); 304 and 316L stainless steel can be customized according to their corrosiveness and high-temperature working conditions. |
Product advantages
- Excellent compensation performance: absorbs pipeline displacement and angle deviation, alleviates thermal stress, and avoids pipeline damage;
- Reliable sealing performance: The combination of special sealing components and flange connections ensures no leakage under high pressure and high temperature;
- Excellent weather resistance: Stainless steel material is suitable for complex media and harsh working conditions, with a long service life.
