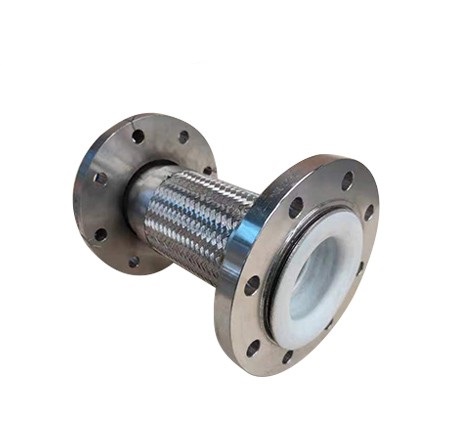

With temperature resistance, aging resistance and non-toxicity, it has excellent vibration reduction and sealing performance. It compensates pipeline displacement, widely used in chemical, pharmaceutical, food, environmental protection and pickling pipelines.
| Parameter Item | Technical Data |
| Material | PTFE Lining, 304 Stainless Steel Braided, Carbon Steel/Stainless Steel Flange |
| Working Pressure | 1.0MPa ~ 6.4MPa |
| Working Temperature | -50℃ ~ 260℃ |
| Compensation Performance | Axial, Lateral & Angular Displacement |
| Applicable Medium | Acid-base liquid, Organic solvent, Corrosive medium |
| Connection Type | Flange / Thread optional |
| Structural Feature | PTFE lining, Strong anti-corrosion, Smooth inner wall |
