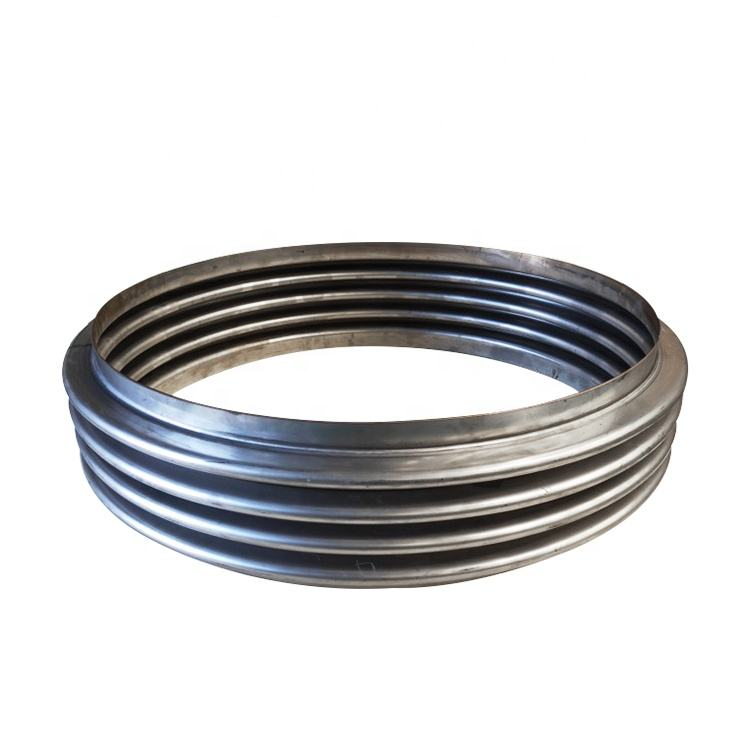

It absorbs axial, lateral and angular displacement caused by thermal expansion, buffers mechanical vibration and reduces pipeline stress. With excellent corrosion and temperature resistance, it is widely used in heating pipelines, power plants, chemical industry and steam piping systems.
| Parameter Item | Technical Data |
| Material | 304/316L Stainless Steel, Carbon Steel Pipe |
| Working Pressure | 1.6MPa ~ 10.0MPa |
| Working Temperature | -80℃ ~ 450℃ |
| Compensation Performance | Axial, Lateral & Angular Displacement |
| Applicable Medium | Steam, Hot water, Oil, Corrosive fluid |
| Connection Type | Welded connection |
| Structural Feature | High temperature & pressure resistance, Zero leakage |
